Titan Deck Plate

$36.00

Skip to product information
1 of 5
400 in stock

Regular price $36.00
Sale price $36.00 Regular price
  • Ground anchored footings in minutes
  • Strength and security of poured concrete

The Deck Foot Plate gives you strength and security similar to a poured concrete footing without the labor, time and cost. Quickly and easily install ground anchored footings for freestanding decks, pergolas, sheds, ramps and more - in minutes!

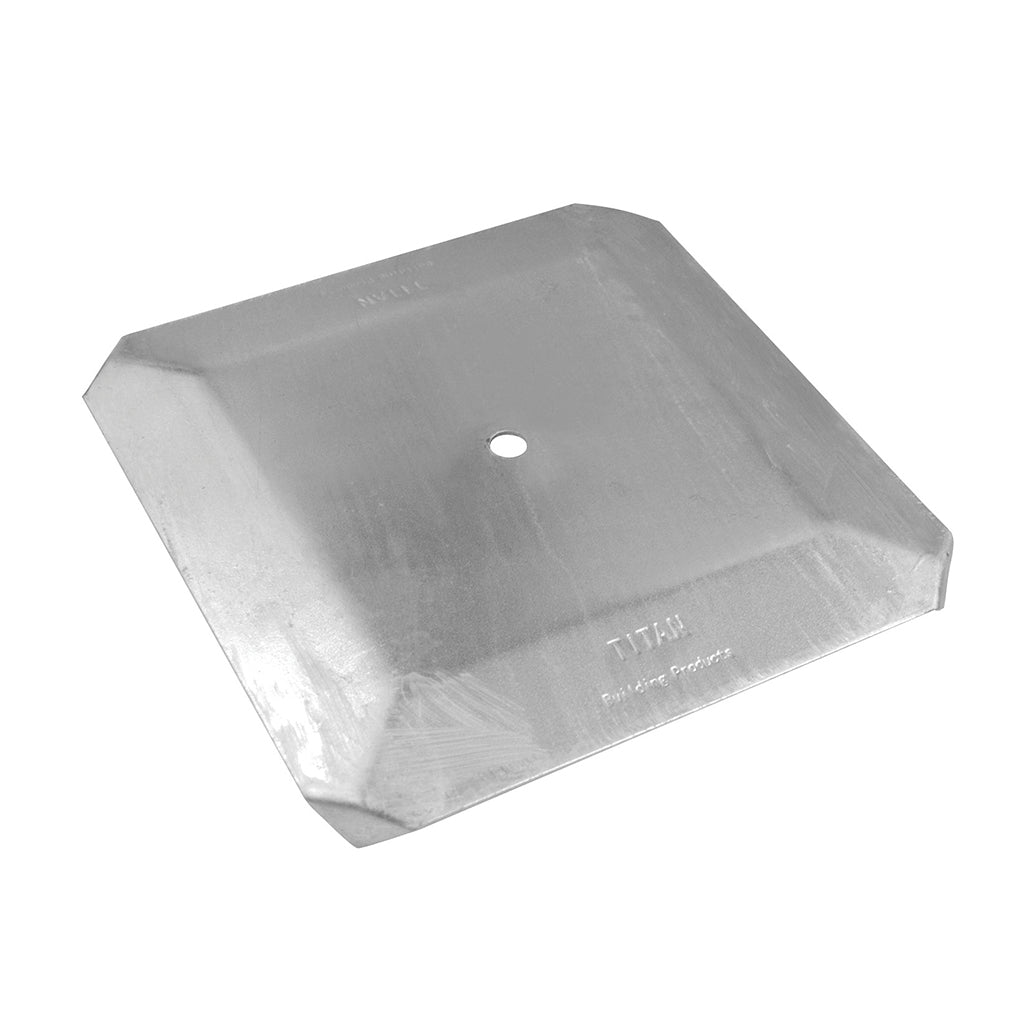

  • 12 in. x 12 in. Deck Plate
  • Finish: Hot dip zinc galvanized
  • Made of formed/welded sheet steel

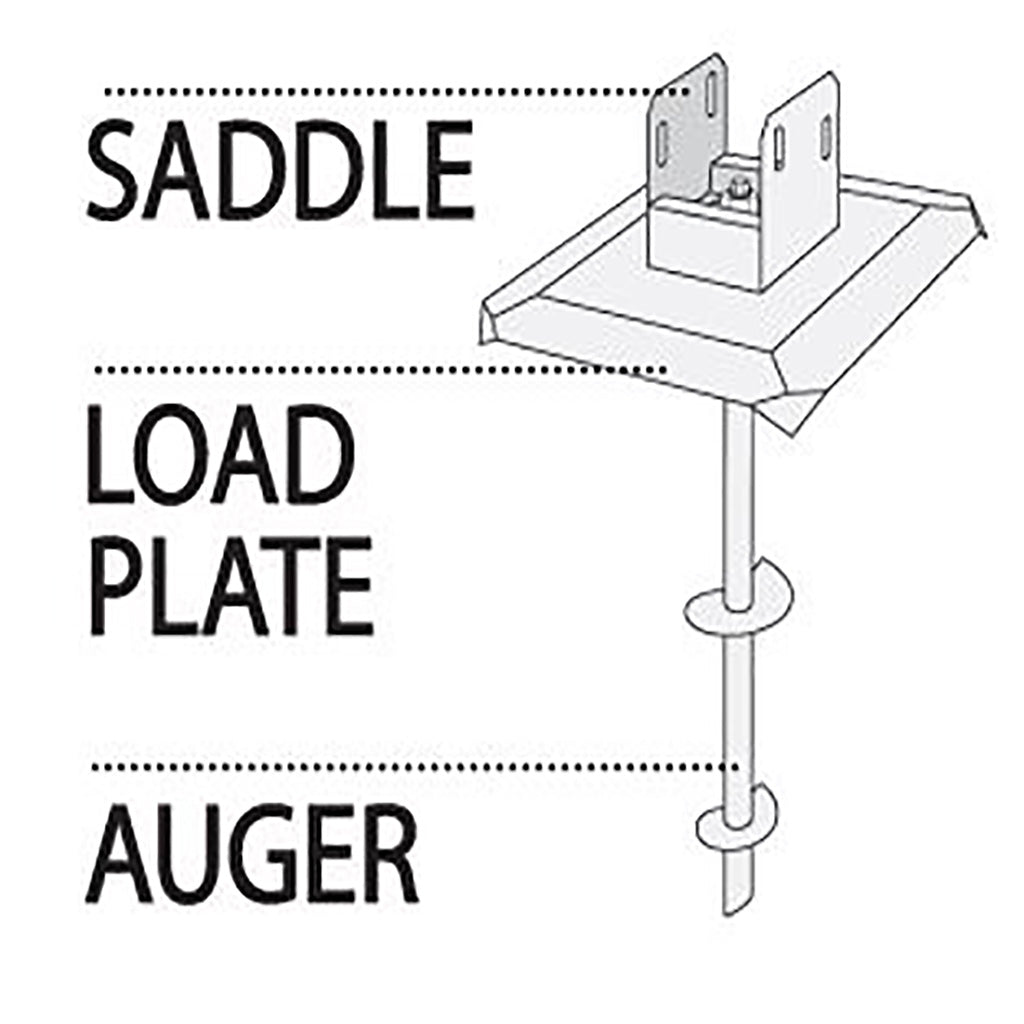

  • Compatible with Post Saddles (VPATIDP442 or VPATIDP662) and Auger (VPATIGA600 or VPATIGA900)
  • Sold in kits with Post Saddle and Auger (VPATIDF442600, VPATIDF662600, VPATIDF442900, or VPATIDF662900)

Titan Building Products:Β +1 866-577-8868

Installation



Β Print Installation Instructions

Specifications
Model VPATIDF442600, VPATIDF442900, VPATIDF662600, VPATIDF662900
Color/Coating Hot dip zinc galvanized
Material Formed/welded sheet steel
Dimensions Post Size: nominal 4x4 (3.5" x 3.5") (89mm x 89mm), Nominal 6x6 (5.5" x 5.5") (100mm x 100mm)
Plate: 12.5" x 12.5" x 1/8" (310mm x 311mm x 311mm)
Auger: 24" (600mm), 36" (900mm)
Weight VPATIDF44600 - 9 lbs (4 kg), VPATIDF44900 - 9.5 lbs (4.3 kg), VPATIDF66600 - 9.5 lbs (4.3 kg), TIDF66900 - 10 lbs (4.5 kg)
Fasteners Recommended: (4) 1/4" x 3" hex head lag screws Sold Separately

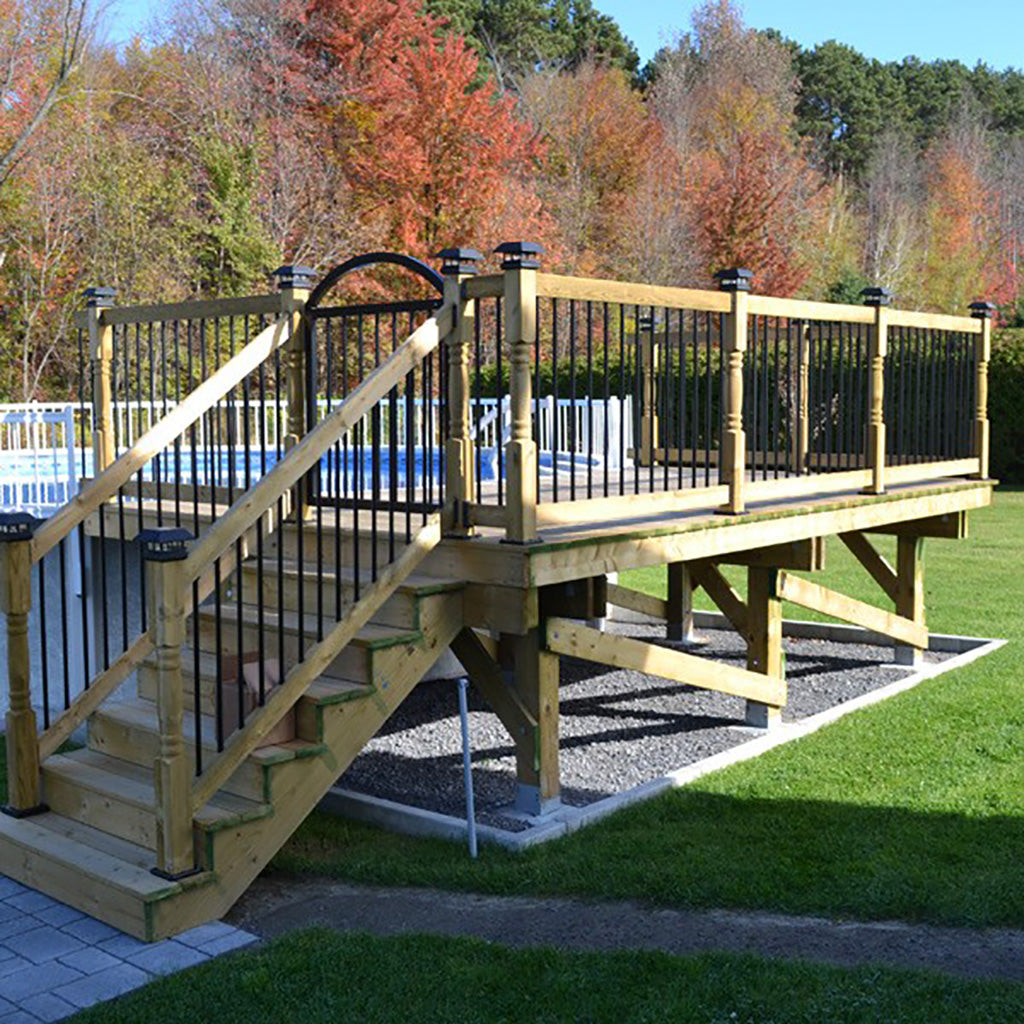

Recommended Uses Designed for footings for decks that are not attached to the ledger of a house. Keep deck ΒΎ" to 1" away from foundation or siding to allow for settling or seasonal vertical movement. Decks can be built as low as 2" from underside of beam to grade and as high as 6' from top of deck surface to grade. Posts should be braced to beams and joists for any deck 18" or higher.
Other Prepare site by removing sod and laying down 3" of Β½" crushed stone and tamp down to compress. Crushed stone compresses well and is porous so water flows away from plate without eroding loose soil in heavy rain. Do not use for free standing posts such as fence posts. Not designed to provide significant resistance from lateral forces at top of post.

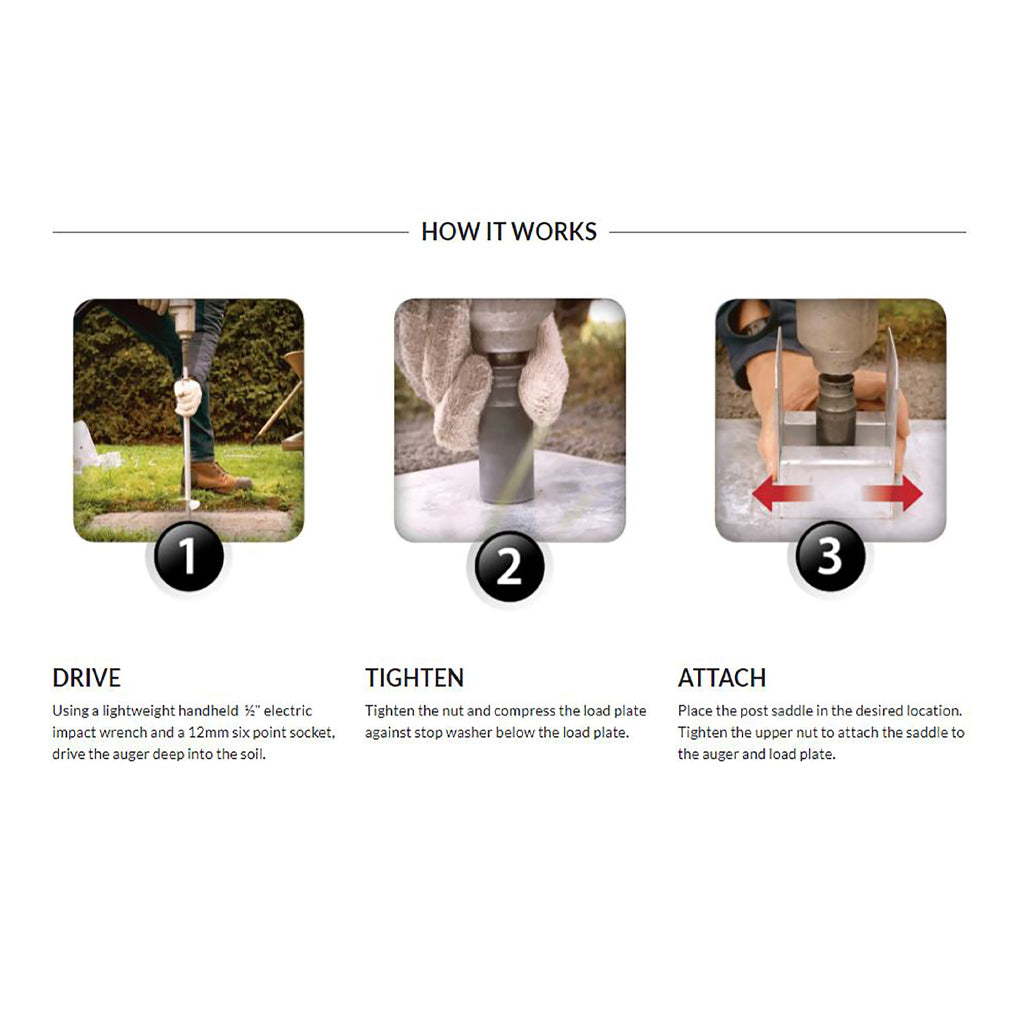

How it works
