Titan Compression Post Base

From $32.00

Skip to product information
1 of 10
Size
80 in stock

Regular price $32.00
Sale price $32.00 Regular price

β€’Β For concrete, stone or wood surfaces
β€’Β Exceptional appearance

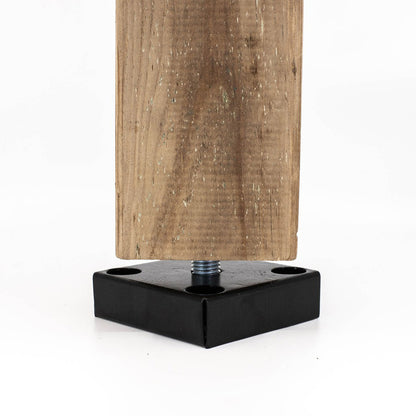

When appearance and performance both matter, you need the new "Evolution" Compression Post Base. Use it for support columns that will be highly visible. You want to avoid the ugly appearance of the common "U" shaped post saddles on the market.

  • Use on concrete, stone or wood surfaces
  • Exceptional appearance
  • No visible fasteners or blade cuts

Titan Building Products:Β +1 866-577-8868

Installation

Β Print Installation Instructions

Specifications
Model
VPATICP44, VPATICP46, VPATICP66 - Black powder coat over hot dip zinc
Material Formed/Welded sheet steel
Post Size Nominal 4x4, 4x6 and 6x6
Dimensions Base: 1” H x 3-Β½" W x 3-Β½" L (24mm x 89mm x89mm)
Tube: 1-ΒΌ" dia. x 4" H (32mm x 100mm)
Base: 1” H x 3-Β½" W x 5-Β½" L (24mm x 89mm x133mm)
Tube: 1-ΒΌ" dia. x 4" H (32mm x 100mm)
Base: 1” H x 5-Β½" W x 5-Β½" L (24mm x 133mm x133mm)
Tube: 1-ΒΌ" dia. x 4" H (32mm x 100mm)
Weight 1 lbs to 2 lbs
Fasteners Use maximum ΒΌ" diameter concrete screws such as GRK Caliburn or Tapcon and minimum 2-ΒΌ" length or use ΒΌ" expansion bolts for concrete surfaces. Fasteners sold separately. See our Fasteners selection.
Recommended Uses & Code Compliance Residential support columns. DO NOT USE AS A RAILING POST OR FOR LATERAL LOADS. TOP OF POST MUST BE SECURED TO SUPERSTRUCTURE. THIS IS FOR COMPRESSION LOADS ONLY.
Composite Decking Pre-drill screw holes before driving screws into composite decking. Composite and synthetic boards are very dense and if holes are not pre-drilled you may snap off the head of the screw. Also pre-drilling holes on wood or composite deck boards anytime a screw will be driven very close to the edge of a board. This will prevent the board from splitting.
Recommended Wood Species Common construction softwoods. Hardwoods can be used but boring the center hole requires more skill and effort due to density of wood.
